Hydraulic door closer
Door Closer-CJ071 Large Square
CJ071 Large Square Door Closer Heavy-duty solution for demanding applications

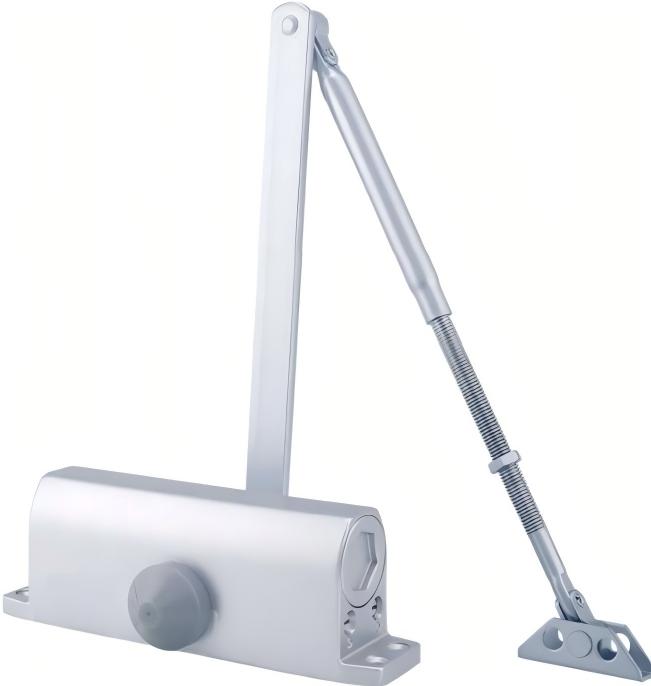

CJ071 Large Square Door Closer
Heavy-duty solution for demanding applications
Built for the biggest and heaviest doors in high-traffic environments, the CJ071 Large Square Door Closer combines serious closing power with precise control and long-term reliability.
Key Features
- Extra-strong construction for doors up to 85 kg
- Full adjustability of closing and latching speeds
- 90° hold-open or fully automatic options
- 180° maximum opening angle
- 150,000-cycle durability
- 2-year warranty
Technical Specifications
- Model: CJ071

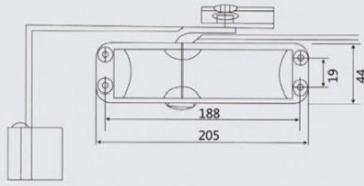

- Installation size: 188 × 19 mm
- Applicable door weight: 65–85 kg (heavy-duty: 80–90 kg)
- Applicable door width: 600–1,000 mm (up to 1,100 mm)
- Suitable for: Plastic-steel, wooden, aluminum, iron, and fire-rated doors
Applications
Main entrances, fire-rated corridors, commercial buildings, and heavy swing doors.

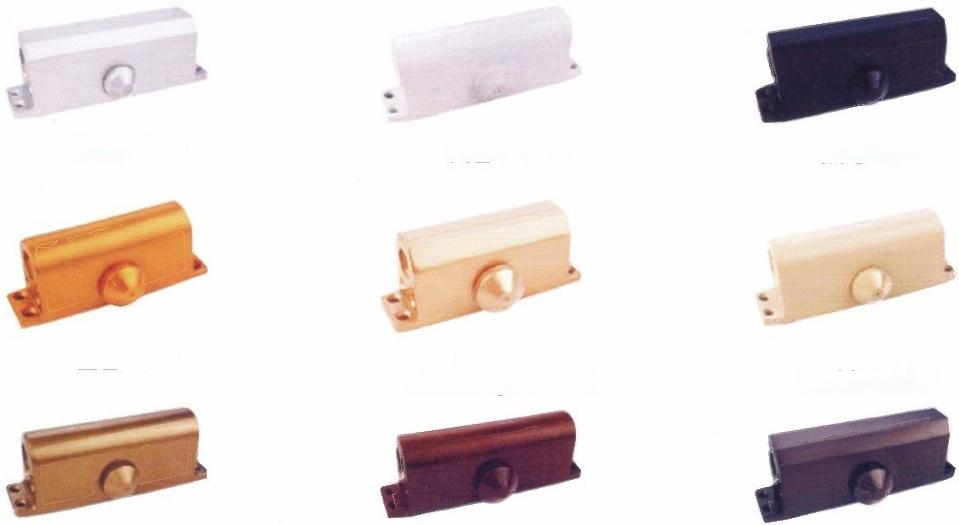

All models are manufactured with strict quality control, advanced production lines, and patented technology. Colors may vary slightly from catalog images; final appearance is based on physical product.
